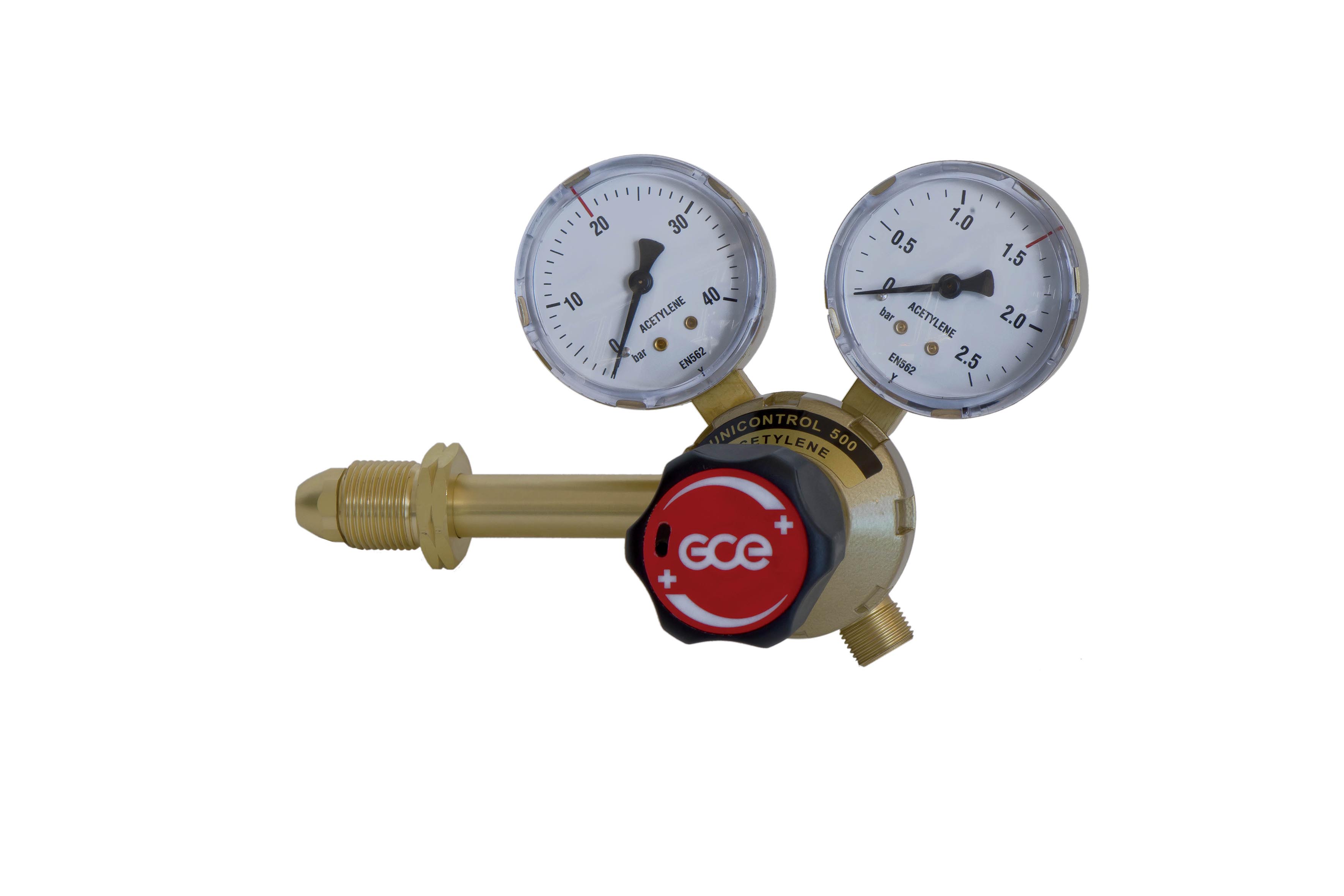

UNICONTROL

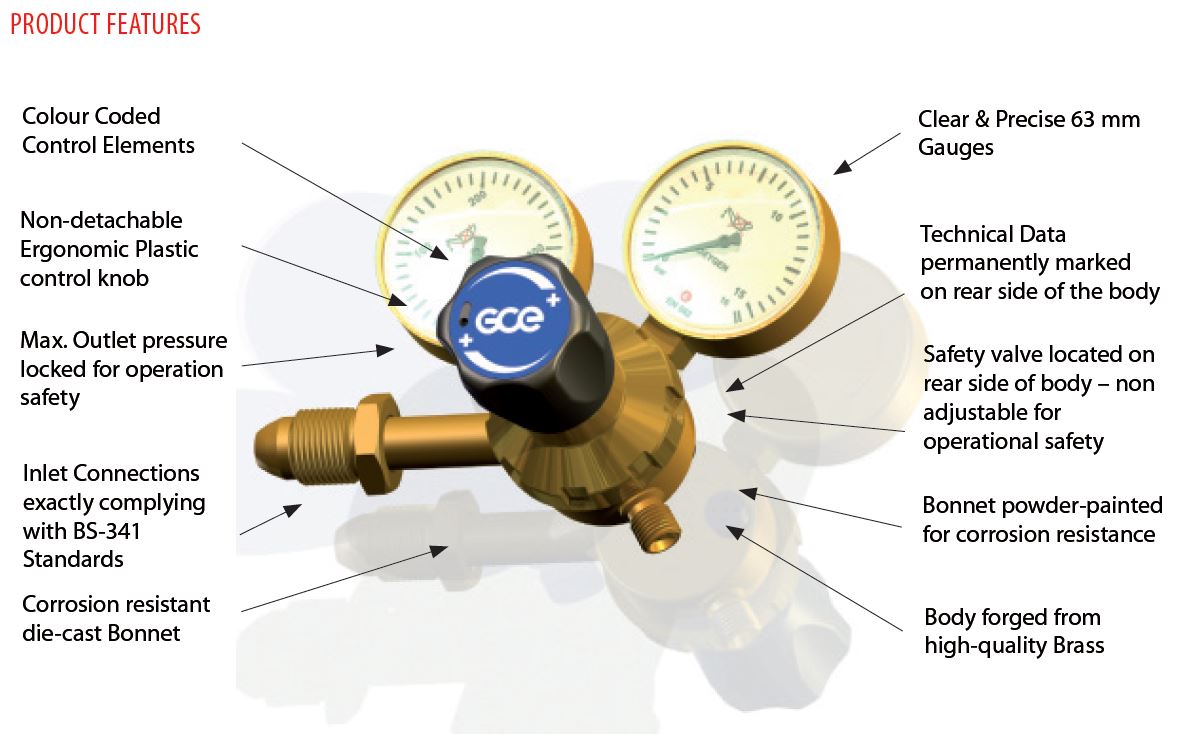

FEATURES, ADVANTAGES, BENEFITS

  • UNICONTROLs are pressure regulators fully conforming to all paragraphs of International Standard ISO2503
  • The main focus during product design and manufacture was on providing excellent performance, robustness and durability and guaranteeing its uncompromised safety.
  • The UNICONTROL regulators use a filter protected fully encapsulated valve, well proven over several generations of GCE regulators.
  • The body is made of solid forged, high quality brass, polished and chemically stabilized.
  • The zinc die-cast bonnet is protected by a double layer powder painting to providing a guarantee corrosion resistance even in very aggressive environments.
  • For operational safety the intergrated Pressure Relief Valve, located on the rear of the body is designed to prevent end users from changing the factory setting.
  • These regulators are independently type-tested and certified by BAM Berlin (The German State Testing Institute).


TECHNICAL DATA

Gas:

O2N2,
H
2, He

Ar
Ar/CO2
CO2
Acetylene Propane
Body: Brass forged
Bonnet: Zn/Al alloy Die Cast
Stems, nuts
and fittings:
Brass
Diaphragm: EPDM NBR
Seat sealing: PA CR
Inlet/Outlet connection: Gas specific connection
Maximal inlet pressure: 200 or 300bar 200 or 300bar 200 bar 25bar 25bar
Outlet pressure range:

0-4bar

0-10bar

0-20bar

0-30bar

0-50bar

0-16l/min

0-32l/min

1,5bar 4bar
Temperature range: from -20°C to 60°C
Weight: Approx. according to gas variant: 1,4 kg
ISO 2503:

ü

ü

ü

ü

ü

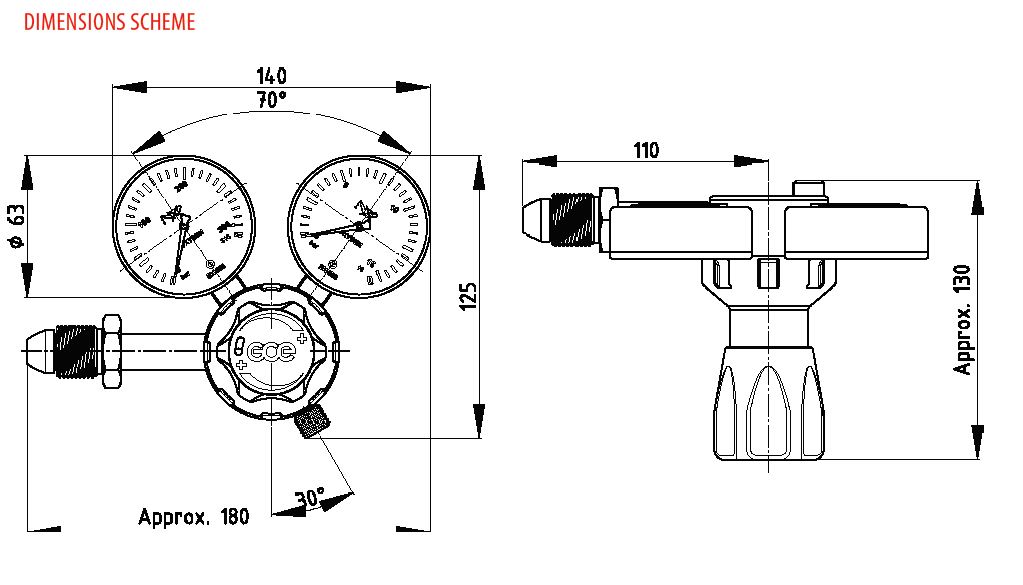

Technical Drawings
