ORBIT

Group Number: 2221


Welding

The shank can be used with either lightweight swaged nozzles or D.H. solid copper tips + brass neck according to the operators preference, enabling precise flame control and up to 8mm (5/16”) welding capacity in steel.


Cutting

The newly designed lightweight cutting attachment uses the nozzle mix principle and is thus highly resistant to backfire and flashback. Although of a lightweight design, it is engineered from solid brass castings and silver soldered tubes to provide an extremely robust construction. Using Orbit A-FN type nozzles and Acetylene fuel gas the orbit has a cutting capacity of over 20mm. GCE BUTBRO torches and nozzles conform to BS EN ISO 5172

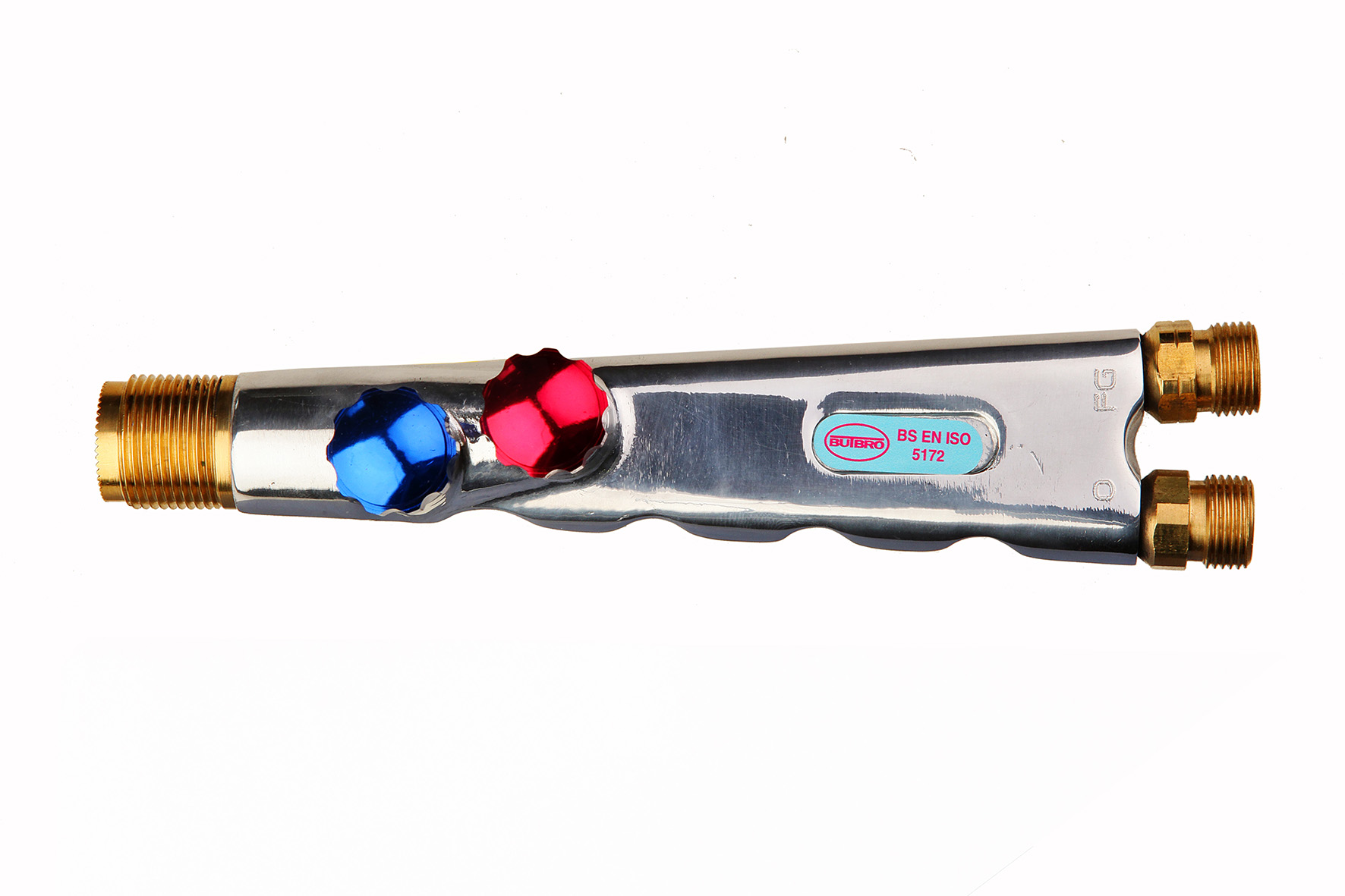

SHANK

Art. Nr. Description Connection
0766229 ORBIT shank G1/4"LH - G1/4"

CUTTING ATTACHMENT

Art. Nr. Description
0766230 ORBIT Cutting attachment

WELDING ATTACHMENT

For use on Orbit torch 1/4” × 26 TPI thread.

Art. Nr. Range Size
62401 to 1 mm size 1
62402 1 - 1,5 mm size 2
62403 1,5 - 2 mm size 3
62405 2 - 2,5 mm size 5
62407 2,5 - 3 mm size 7
62410 3 - 4 mm size 10
62413 4 - 5 mm size 13
62418 5 - 6 mm size 18
62425 6 - 8 mm size 25

HEATING ATTACHMENT

Art. Nr.  Description
81666  ORBIT Heating attachment

ORBIT THREAD DH NECK

Art. Nr.  Description
62017  ORBIT thread DH neck

NOZZLE NUT

Art. Nr.  Description
9438170  ORBIT c/a nozzle nut

MIXER

Art. Nr.  Description
0766231 ORBIT mixer
