High Flow Line Regulators


PROTÉE 431 - REGULATOR WITH BALANCED VALVE (FIRST STAGE REGULATOR)

This regulator is designed for medium and low pressure. Thanks to their balanced valve, the PROTÉE are insensitive to the variations of the outlet pressure. They enable the distribution of all non-corrosive compressed gas (except oxygen: contact GCE).

APPLICATION

  • First stage regulation for a propane cistern
  • Gas distribution of medium pressure
  • Supply gas for burners in medium pressure
  • Oven inert
  • Gas supply for safety devices
  • Pressure limiting device (PROTEÉ 431 with RD05)

PRODUCT ADVANTAGES

  • Watertightness in case of bad weather
  • All components comfortably accessible
  • Easy and fast dismantling
  • Simple and heavy-duty
  • Low closing pressure
  • Removable encapsulated valve

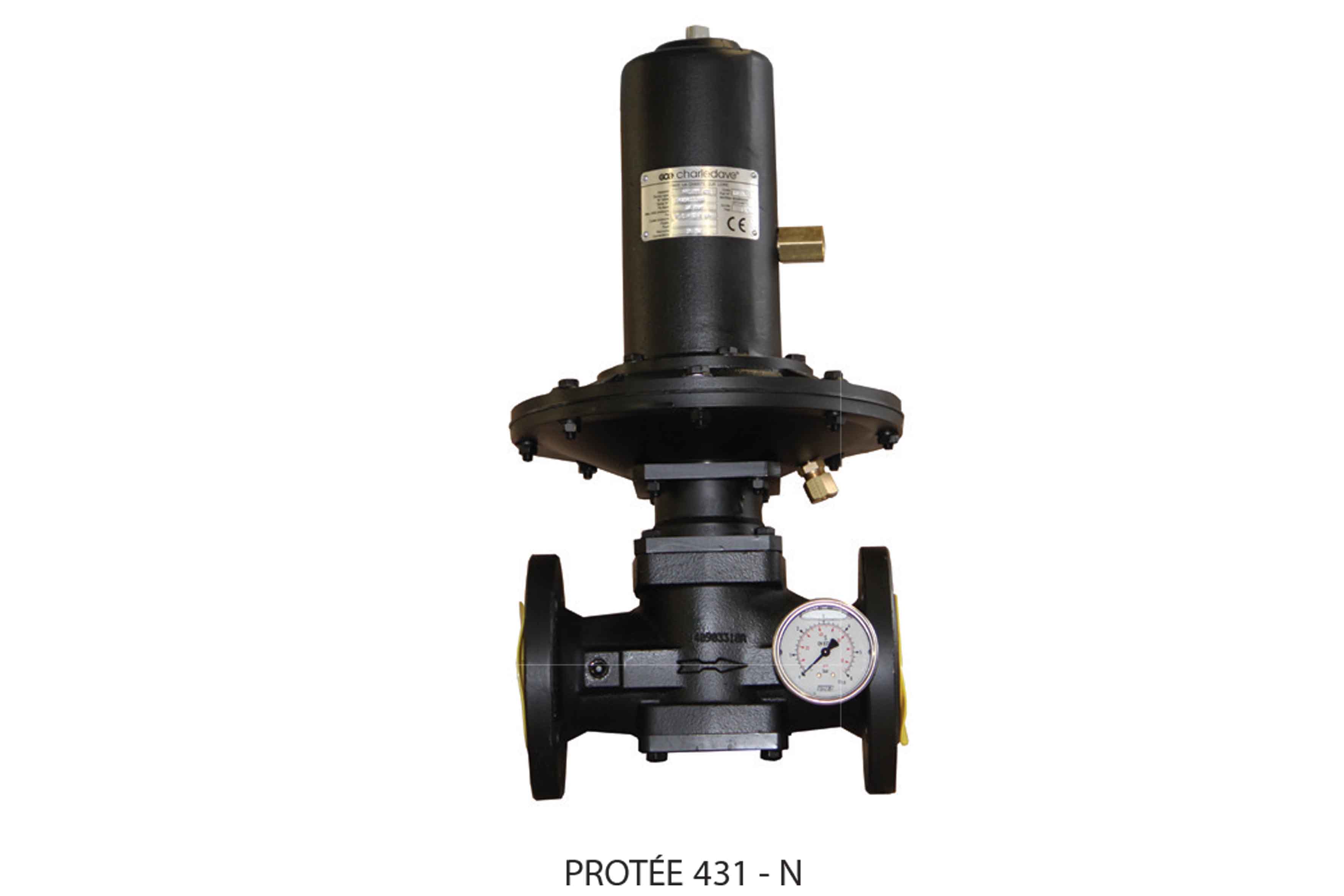

PROTÉE 431-N

Art. Nr.

Connection

Gas

Max.inlet pressure
bar (psi)

Outlet pressure
bar (psi)

Flow air Nm3/h

Flow propane kg/h
 I101349 Flanged DN 50* N,M,P 20 (300) 0,8-2,1 (12-30) 400-1150  620-1750
I101350 Flanged DN 50* N,M,P 20 (300) 2,1-3  (30-40) 400-1450  620-2250
I101351 Flanged DN 50* N,M,P 20 (300) 3-6,5 (40-90) 400-2305  620-3570

*Version with gauge


PROTÉE 431-S (AML1 with RD05)

Art. Nr.
Connection Gas

Max.inlet pressure
bar (psi)

Outlet pressure
bar (psi)
Flow air Nm3/h
Flow propane kg/h
 I101352 Flanged DN 50* N,M,P 20 (300) 0,8-2,1 (12-30) 400-1150  620-1750
I101353 Flanged DN 50* N,M,P 20 (300) 2,1-3  (30-40) 400-1450  620-2250
I101354 Flanged DN 50* N,M,P 20 (300) 3-6,5 (40-90) 400-2305  620-3570

*Version with gauge


SPARE PARTS

Maintenance kit for models with spring used with non-corrosive gas.

Art. Nr.
Model Contents
I291283 PROTÉE 431-N 1 diaphragm, 1 diaphragm washer (for AML2), 1 complete reagulating valve, 3 washers (plug and valve), 1 blind nut
I291270

Previous model of PROTÉE 431-N

washers, 1 diaphragm, 1 complete regulating valve, 1 valve axis


ACCESSORIES

Outlet security kit for N-models not having outlet security device, GCE propose a security kit.

Art. Nr.
Model Outlet pressure Name
I291308 PROTÉE 431-N 0,8 to 2,1 bar Kit RD05 - B PROTÉE 431
I291307

PROTÉE 431-N

2,1 to 3 bar, 3-5 bar

Kit RD05 - A PROTÉE 431

The installation of the security device has to be done in our workshop.


TECHNICAL DATA

Max. inlet pressure: 20 bar
Material: Cast iron body
Connection: Flanged DN50 PN 40 inlet and outlet
Operating temperature range: from -20 to + 60°C

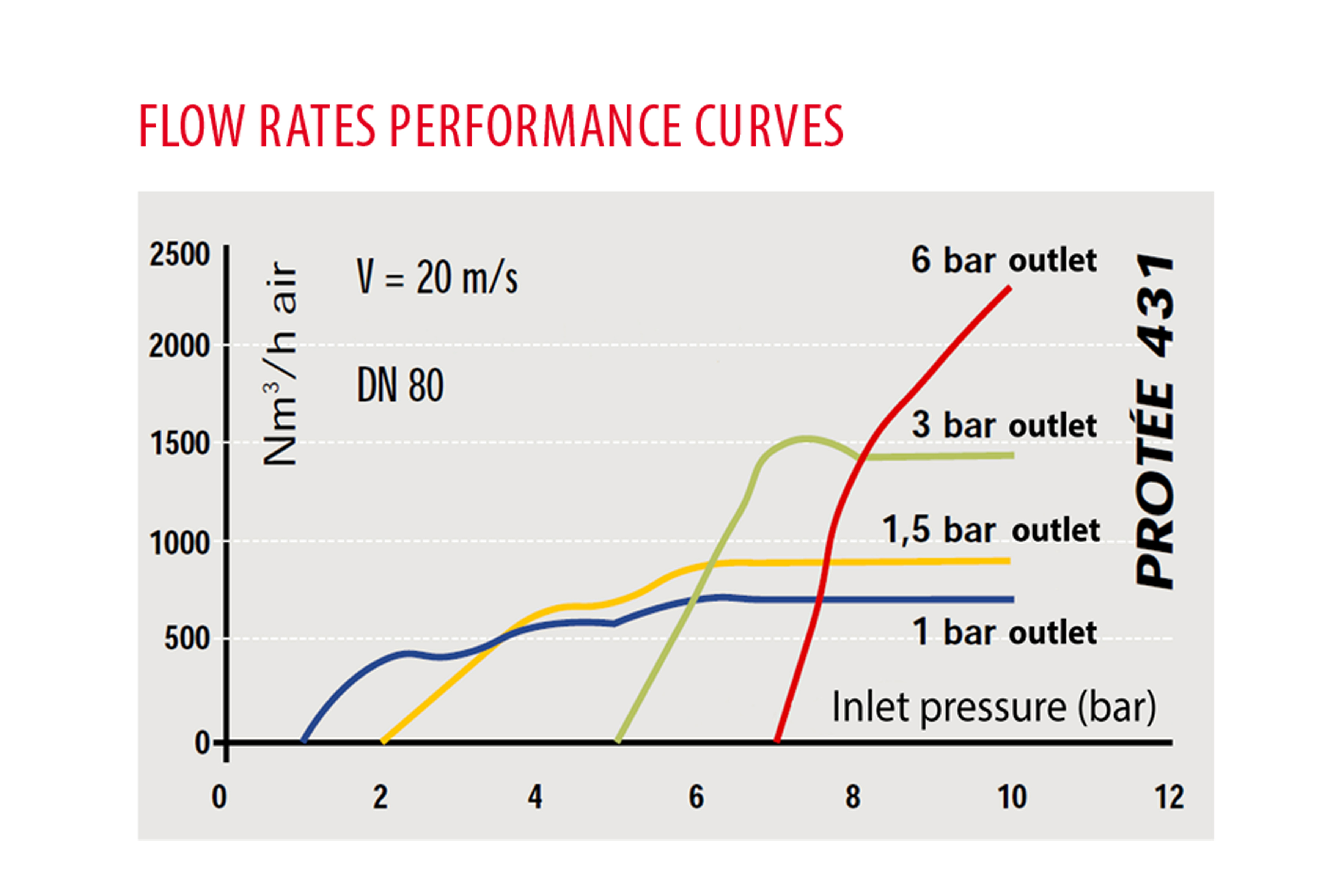

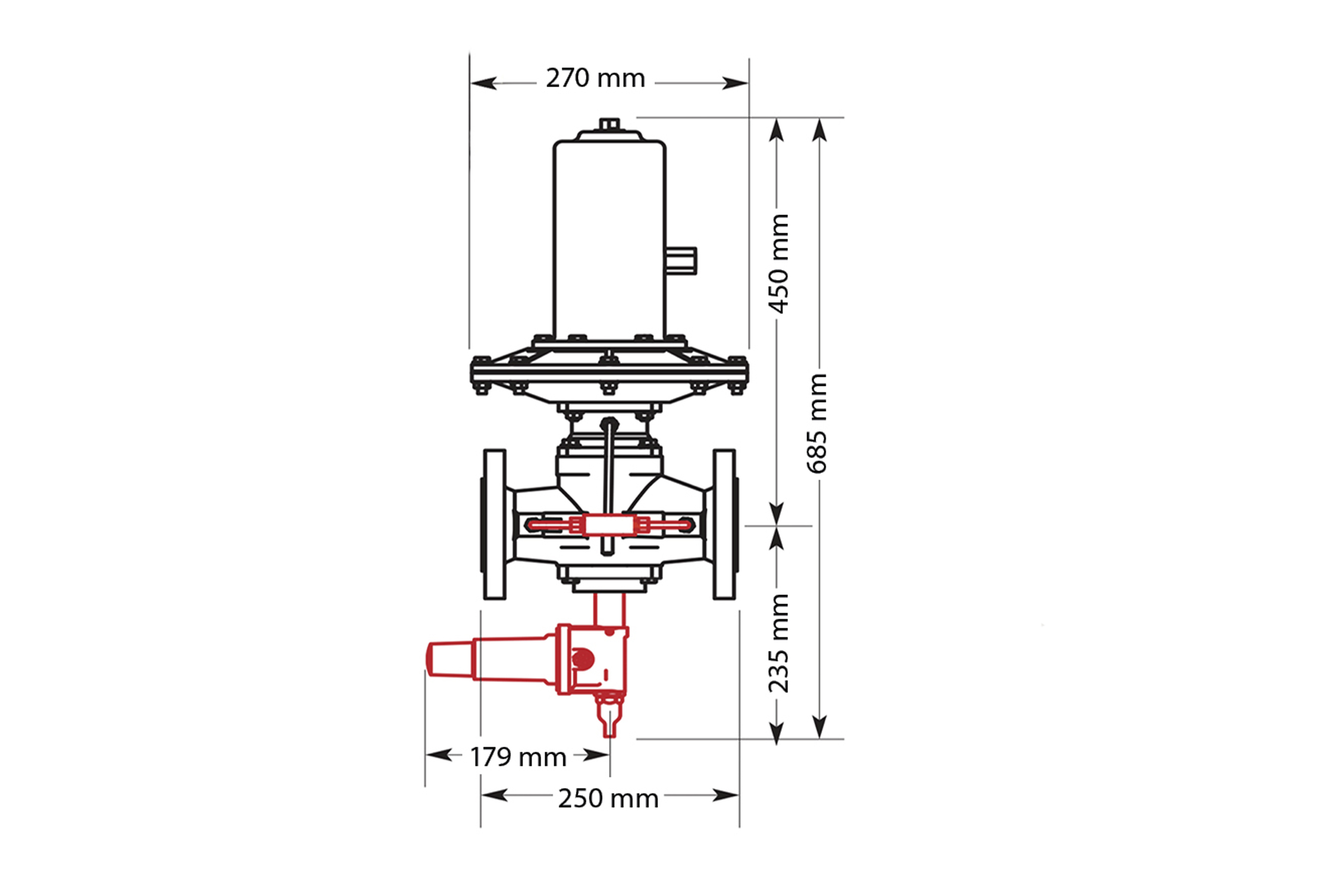

Technical Data Sheet / Drawings :
