OUTLET POINTS UNISET +

Group Number: 2711

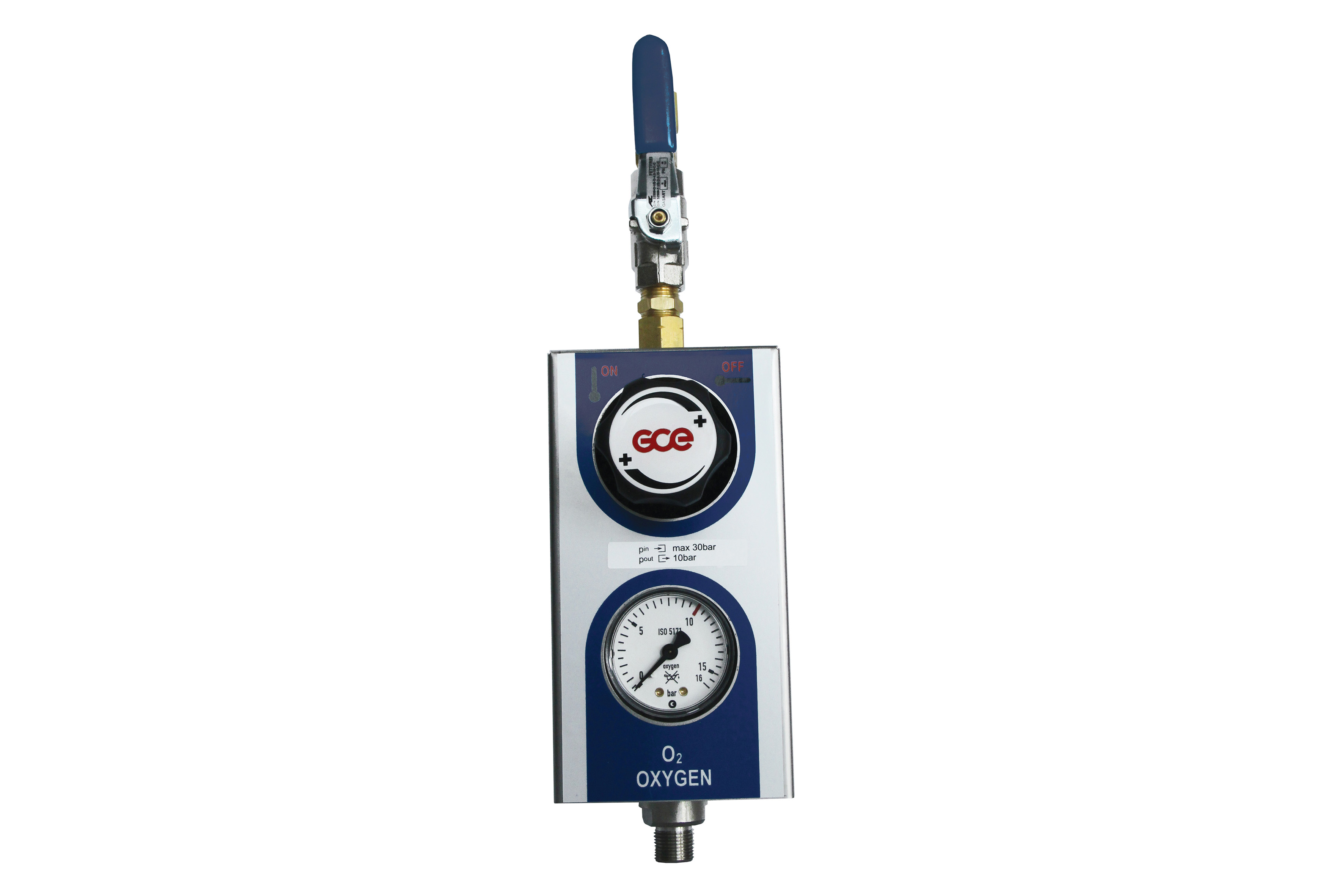

UNISET+ outlet points are an innovation in the field of central gas supply in deed. Excellent protection, given by the external steel cover, is combined with excellent look and easy assembly. Their high precision gives the possibility to use them with any industrial application.

UNISET+ outlet points are based on inlet ball valve and line pressure regulator. All variants include inlet brazing socket for 8 mm tube and outlet hose nipple. Oxygen, acetylene and fuel gas version contain also pressure gauge and outlet safety device MV93. MV93 is flashback arrestor protecting pipe works and gas source against flame coming from application in case of safety issue. There are two types for shielding gases (Ar, Ar/CO2 and Ar/O2 mixtures). First of them consists of flow-gauge showing flow-rate adjusted by pressure regulator. The second one is based on flow-meter with dosing valve giving and showing exact flow-rate.

Maintenance operation thus makes very simply to be executed by just removing the metal cover, fully independent from the internal parts.


TECHNICAL DATA

Regulator body and bonnet: Brass, Zn alloy
Diaphragm: EPDM, NBR
Seat sealing: PA, Chloroprene
Connectors & fittings: Brass
Cover: Stainless steel
Flashback arrestor: Brass Ni-coated
Maximal inlet pressure: 30 bar Oxygen
Maximal inlet pressure: 40 bar Inert gases
Temperature range: from -20 °C to 60 °C

UNISET +

Art. Nr. Gas Outlet range Outlet
CE14000 O 0-10 bar G3/8“
CE14100 A 0-1,5 bar G3/8“ LH
CE14105 H/M/LPG 0-4 bar G3/8“ LH
CE14200 Ar/Mix 0-32 l/min Gauge G3/8“
CE14250 Ar/Mix 0-30 l/min Flow-meter G3/8“
CE14300 N 0-10 bar G3/8“

Technical Datasheet

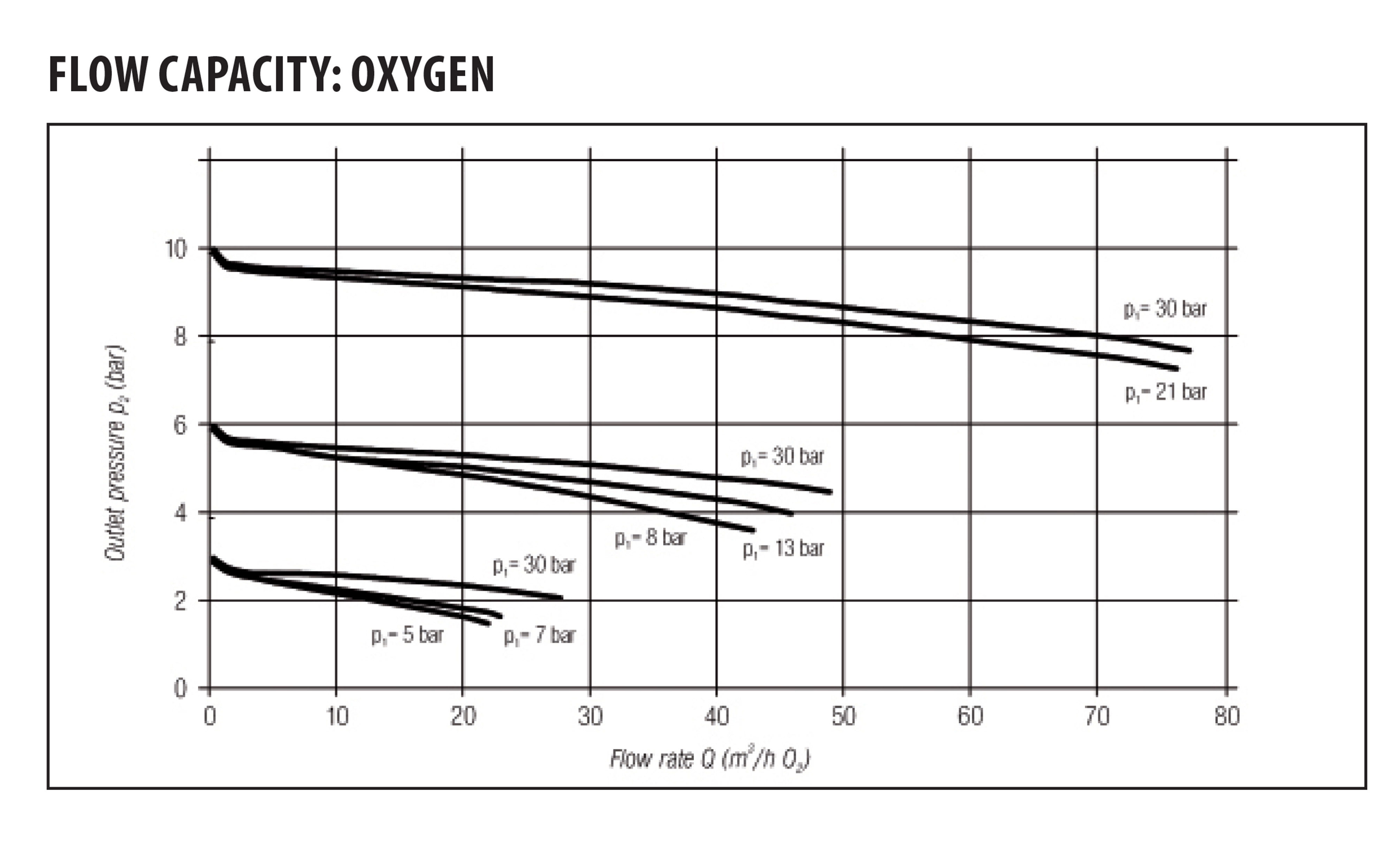

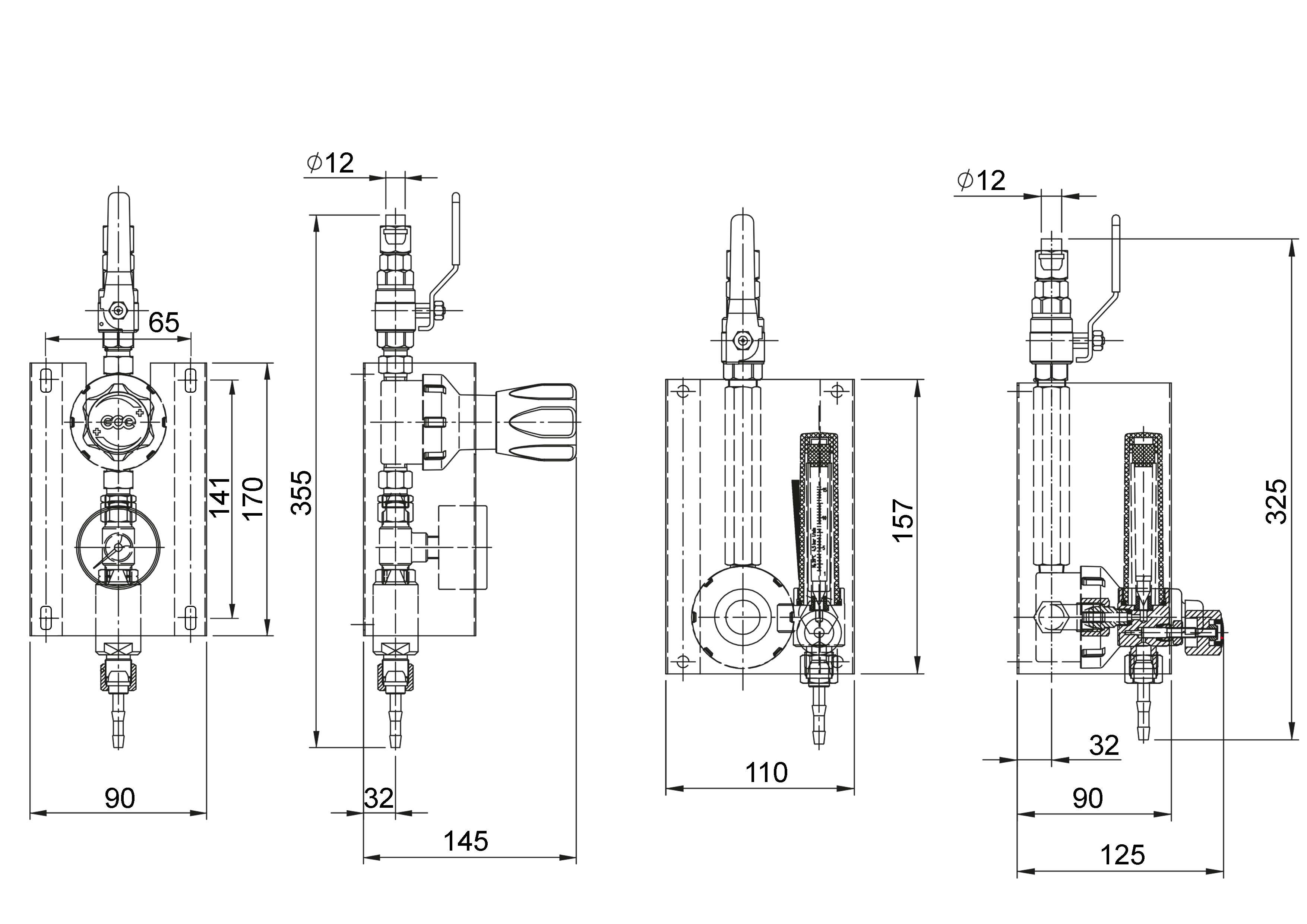

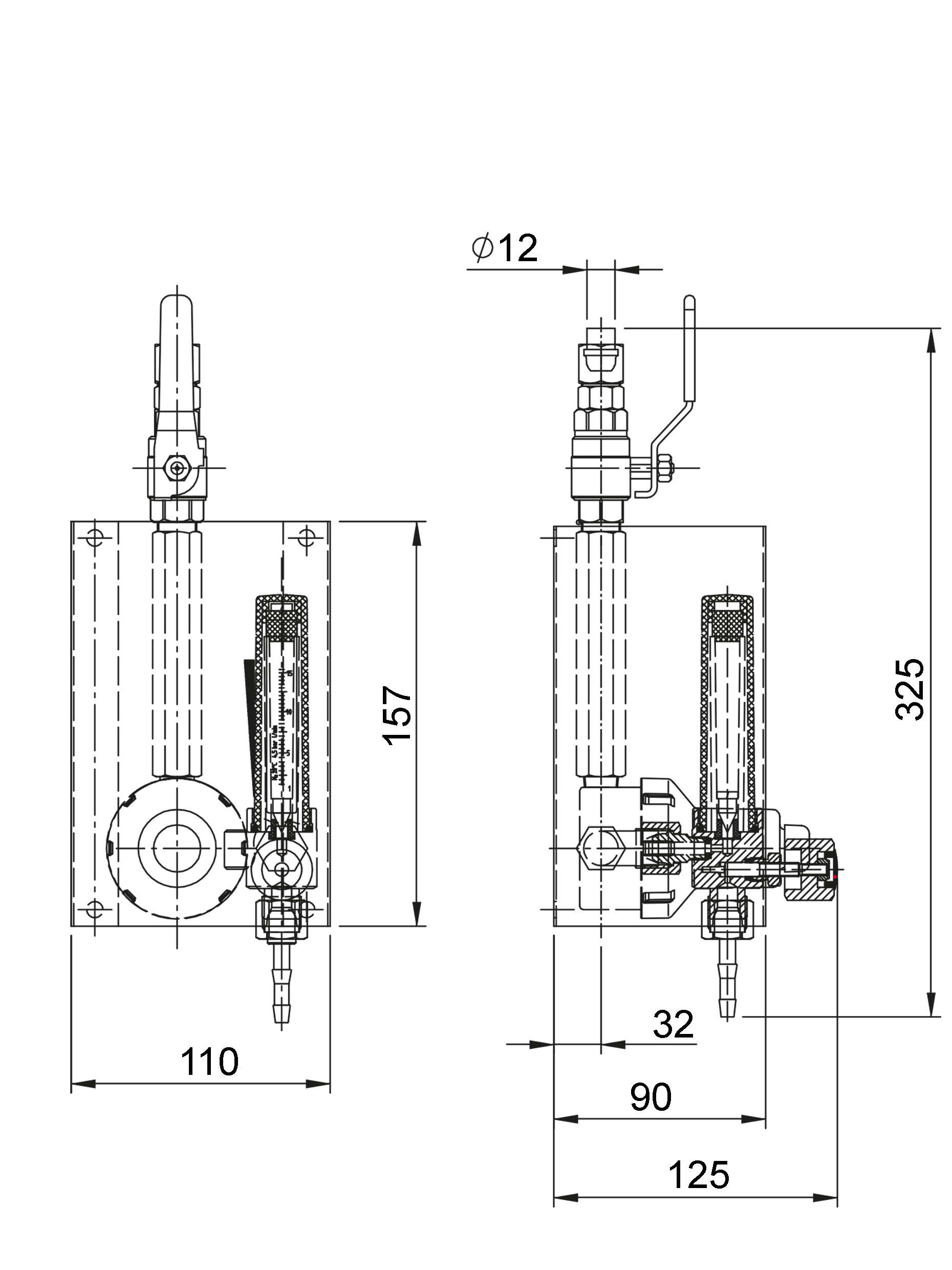

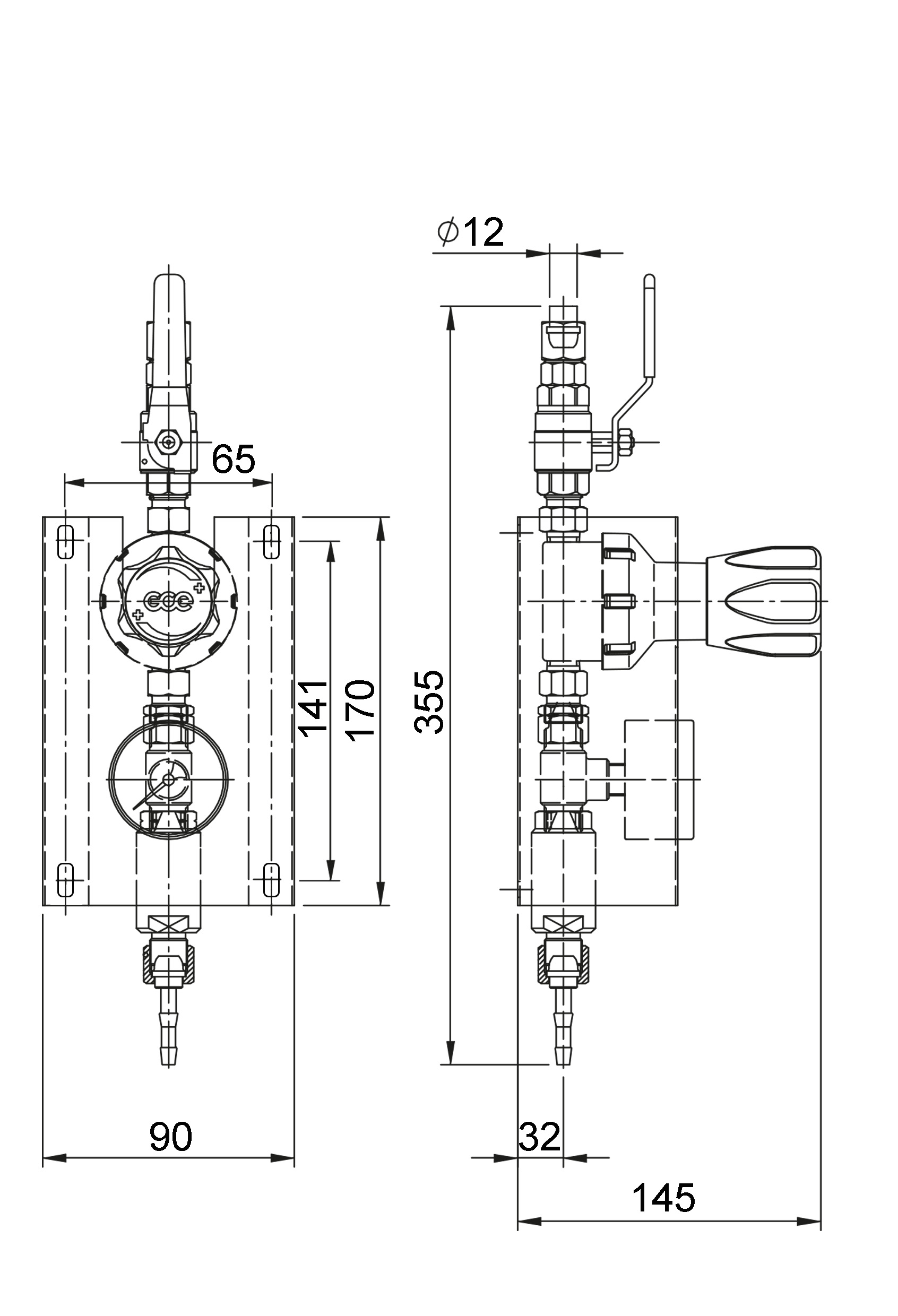

Technical Drawings
