Gas Control Panels

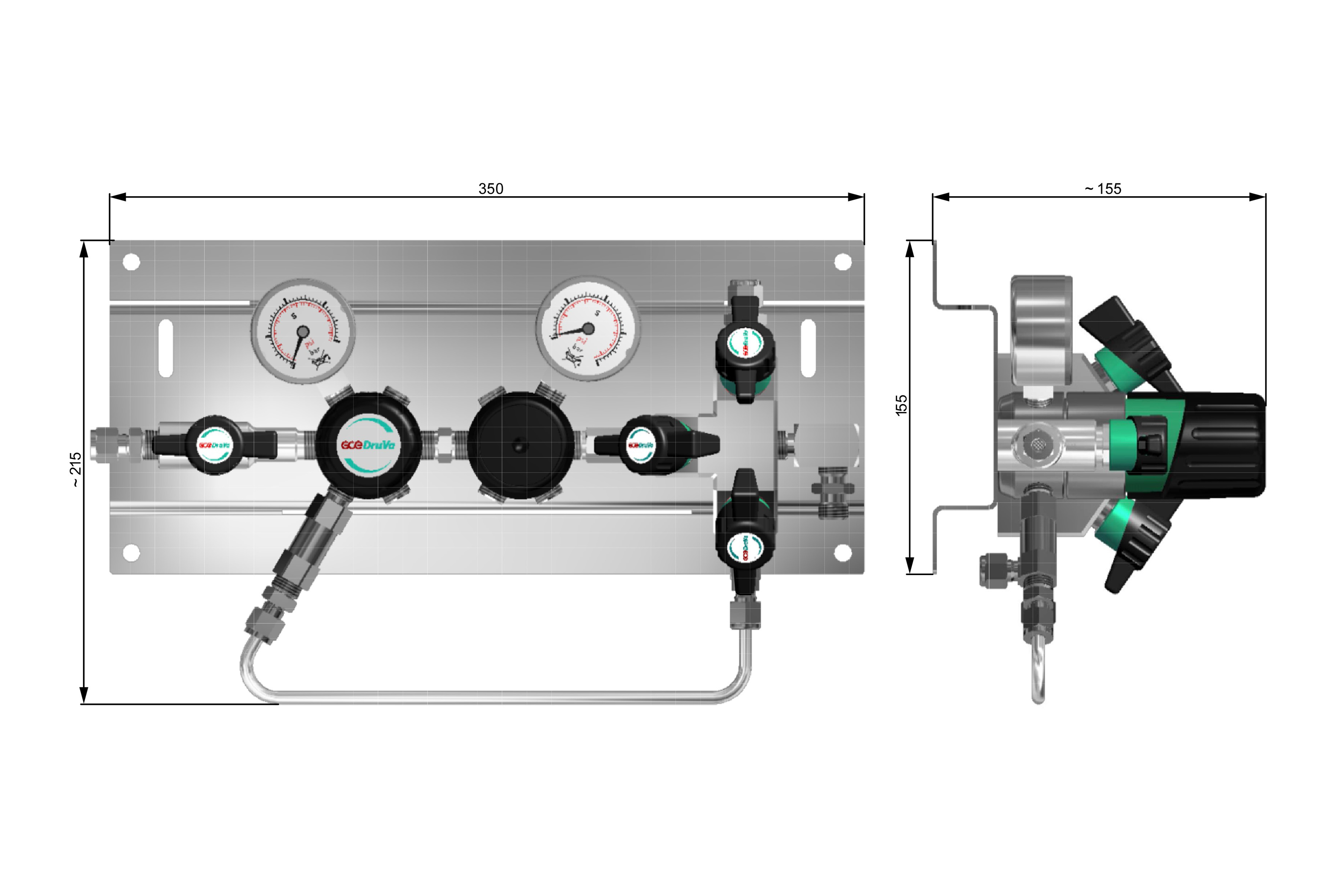

SMD 502/532-27. 2-STAGE, 6.0 INERT PURGING

Group Number: 4500

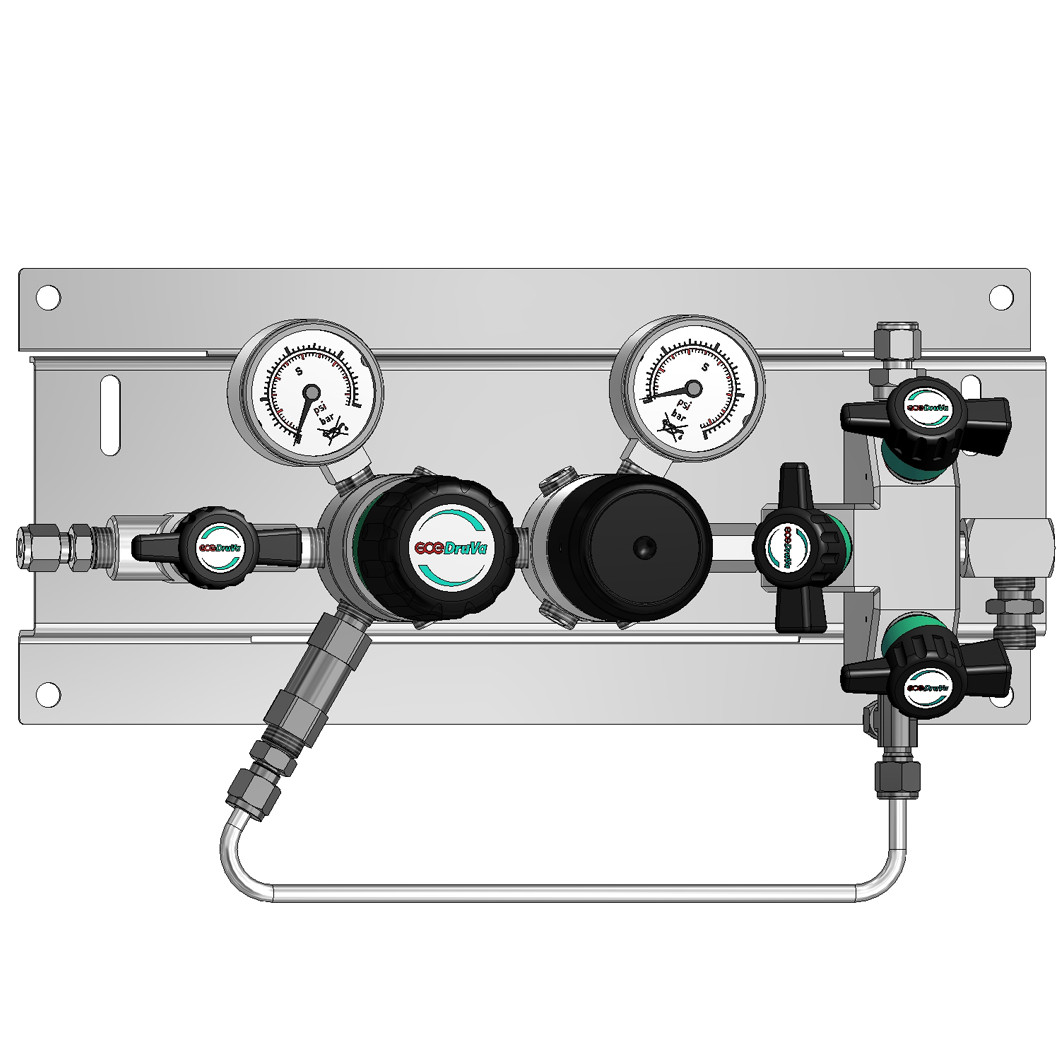

Compact single-stage gas supply panel for corrosive or toxic gases and mixtures up to purity 6.0. Includes an upstream purge block for inert gas purging, upstream and downstream pressure gauges and a relief valve For the connection of 1 cylinder with a maximum filling pressure of 230 bar (SMD500-26) and 300 bar (SMD530-26). Diaphragm type regulator and isolation valve.

For wall mounting or gas cylinder cabinet mounting
Excellent and accurate Pressure control
Designed to minimize contamination
Low internal volume (no dead-space)
Ergonomical and functional design
Designed for easy installation
Long service life and easy to maintain
Suitable for ECD applications
Modular: Extendable - 2x1, 3x1, 4x1 cylinders
Hastelloy trim for corrosive gases available
Not for O₂ use

TYPE	DESIGN
SMD502-27:	230 bar / 3335 psi Inlet Purge block Outlet isolation valve
SMD532-27:	300 bar / 4350 psisig Inlet Purge block Outlet isolation valv

Regulator Type	High Purity Cylinder regulator
Max Inlet Pressure	230 bar/ 3335 bar \| 300 bar/ 4350 psi
Max Outlet Pressure	1 = 0,2 - 1 bar (3 - 15 psi) \| 3 = 0,2 - 3 bar (3 - 45 psi) \| 6 = 0,5 - 6 bar (7 - 85 psi) \| 10 = 1 - 10,5 bar (15 - 200 psi)
Body Material Type	Stainless steel
Inlet Connection	N14 = 1/4'' NPTF M14 = M14x1,5
Outlet Connection	Modular - check datasheet
