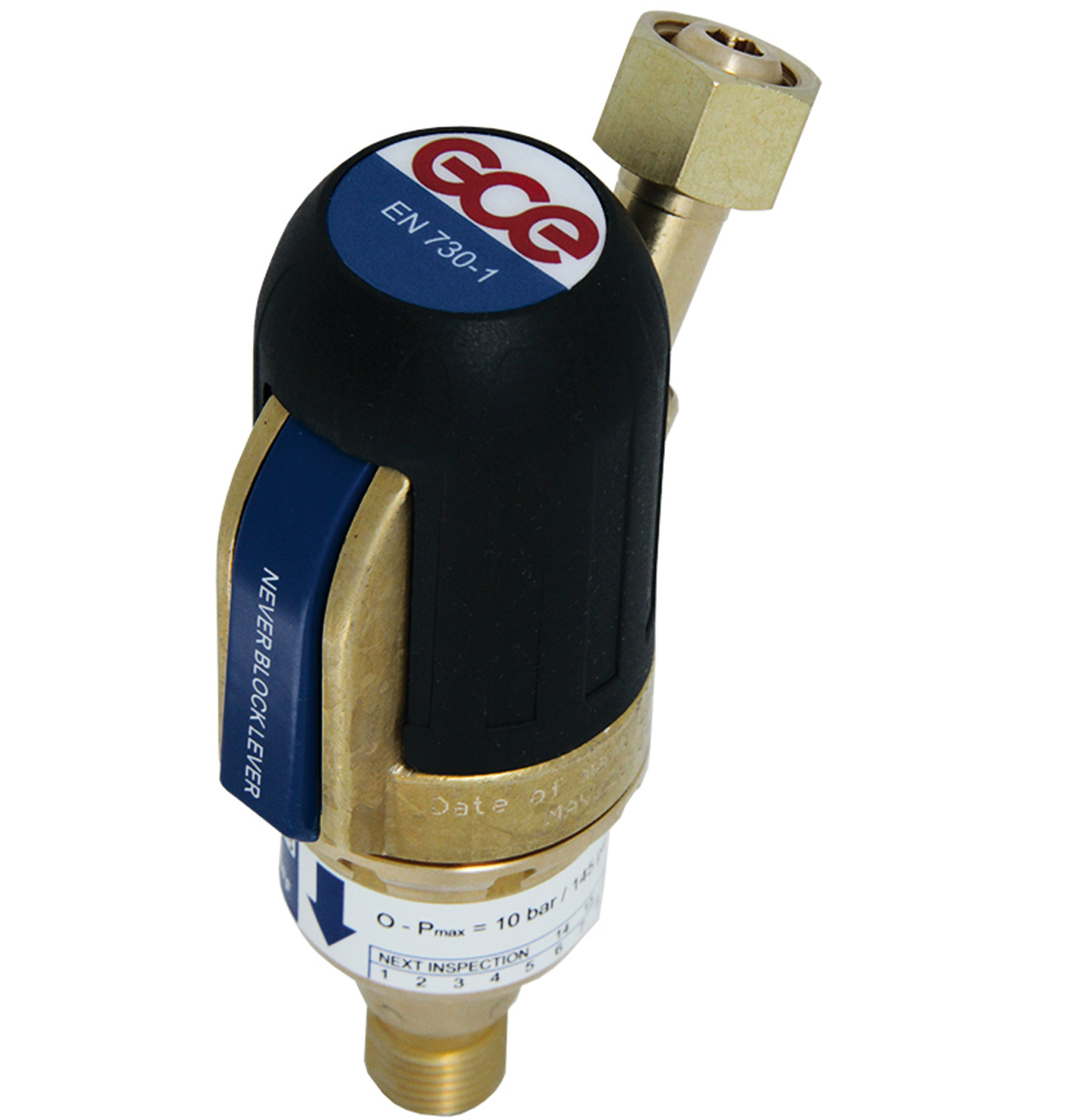

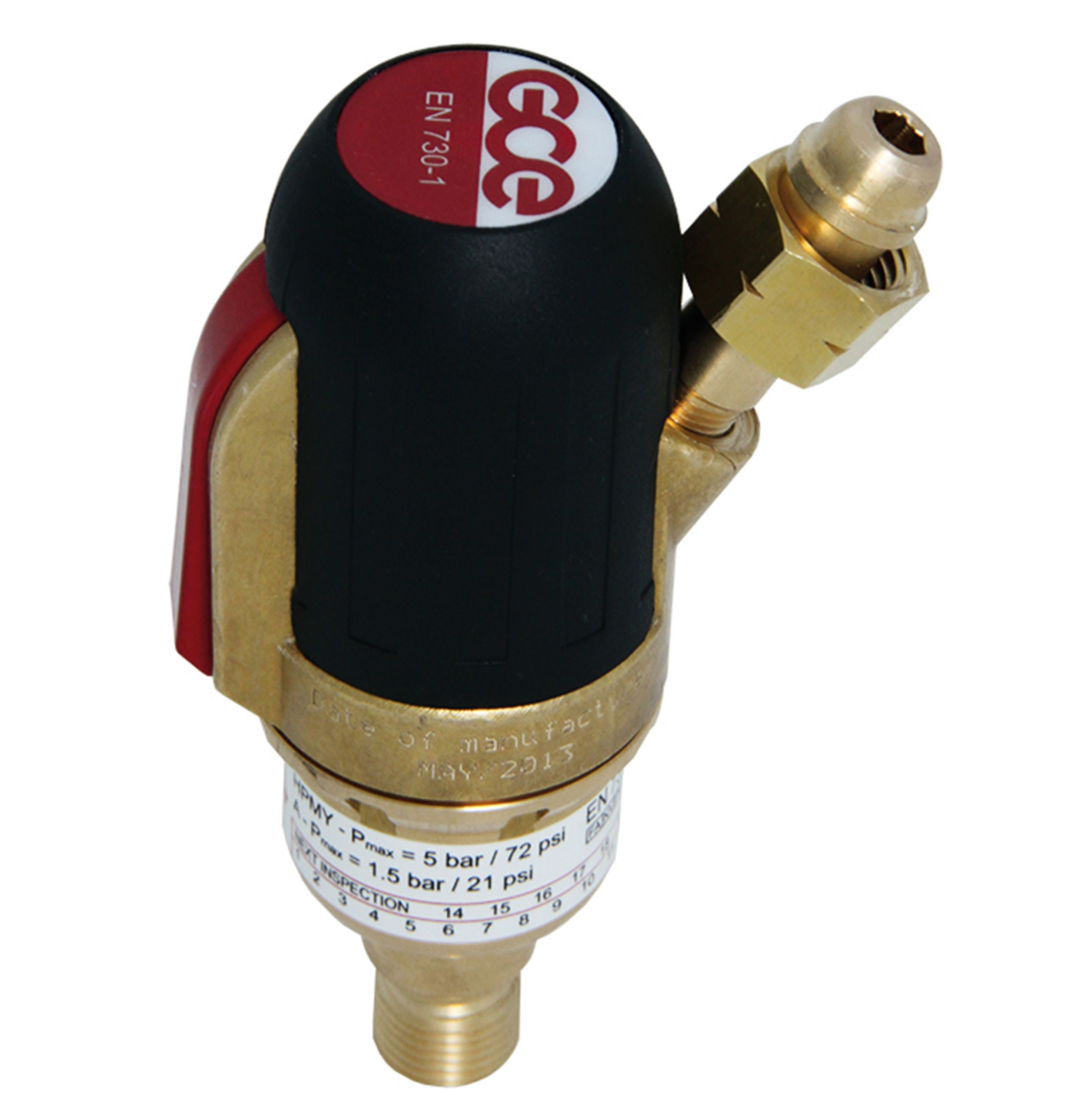

SAFE-GUARD-5 / 5 FUNCTION FLASHBACK ARRESTOR
The latest innovation from GCE the SAFE-GUARD-5 offers the maximum level of protection required by EN730-1 to prevent dangerous flashbacks from reaching the regulator and cylinder supply sources.
There are so many conditions that can cause a flashback, the fitting a flashback arrestor is commonsense.
This unit offers the highest level of safety.
FEATURES :
- Maximum number of safety features defined by EN730-1
- High visibility trip/reset lever coupled with quick acting reset even when pressurised
- Angled inlet to minimise hose damage
- 100% production flame tested for Flashback resistance
- Inspection dates can be marked on product for easy reference

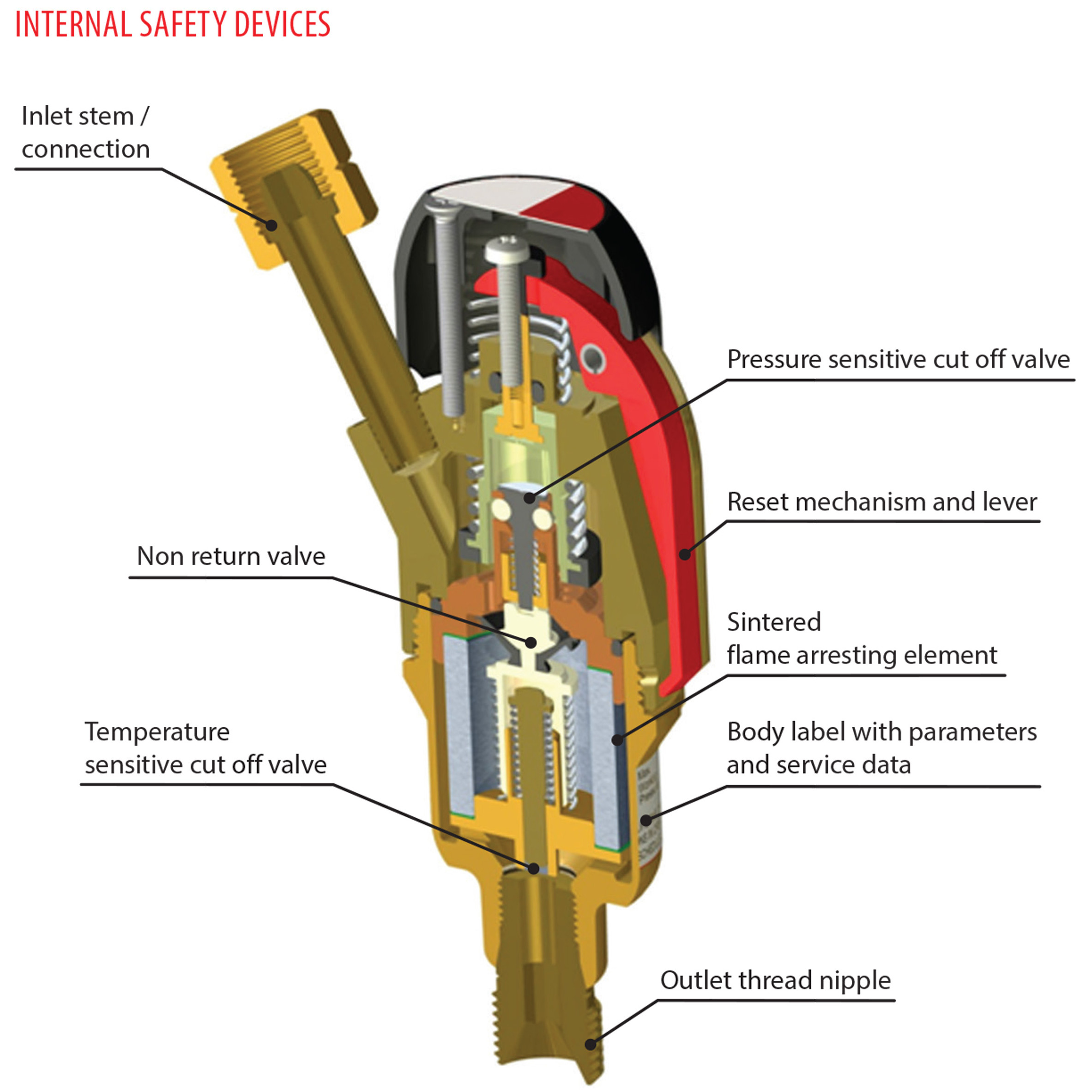

FUNCTIONS :
- Flame arresting element FA
- Non return valve NV
- Pressure sensitive cut off valve PV
- Temperature sensitive cut off valve TV
- Reset mechanism to clearly advise unit activation RM

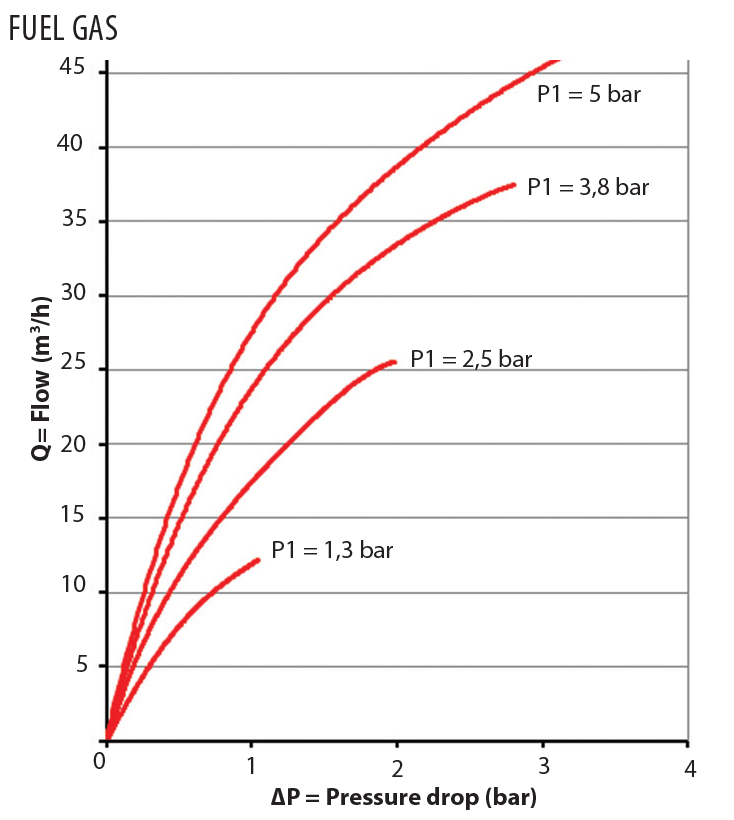

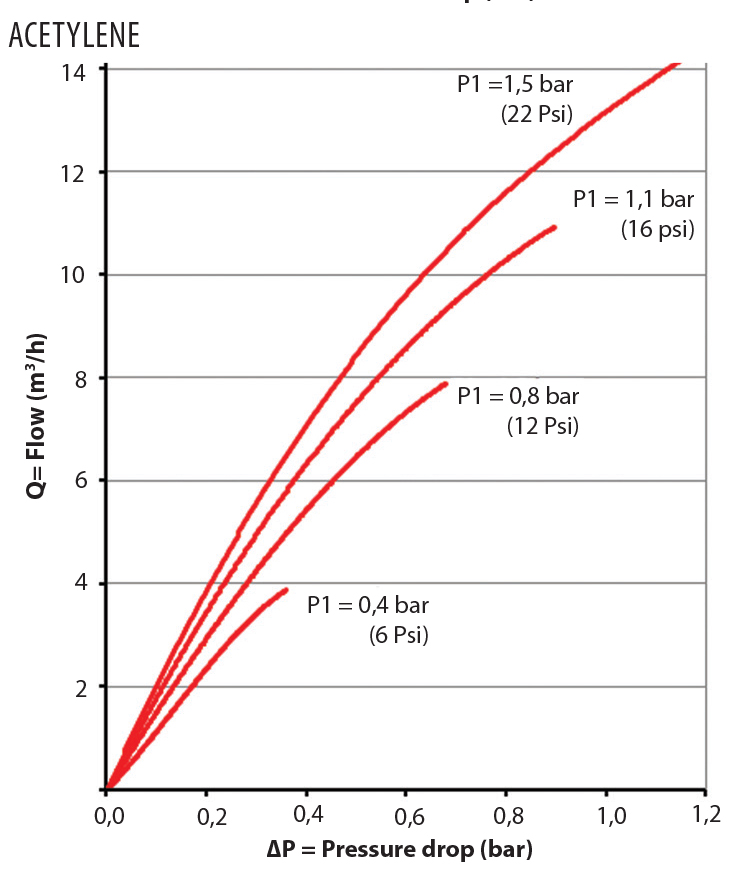

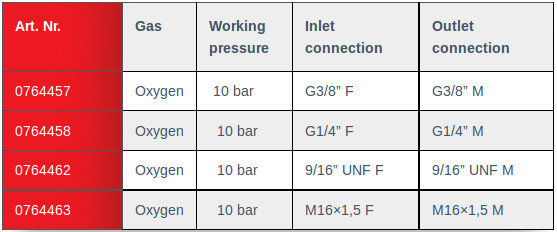

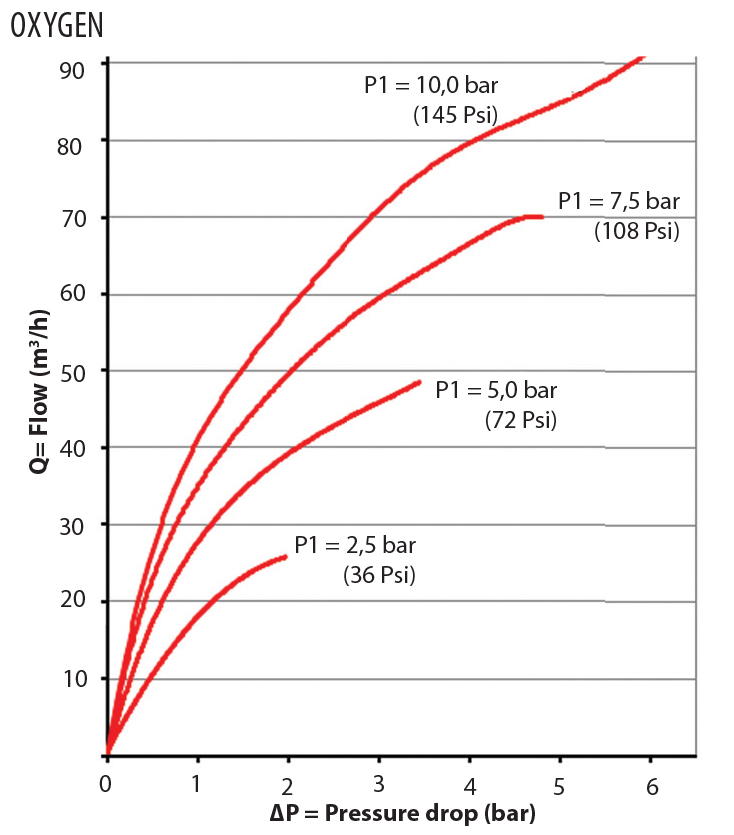

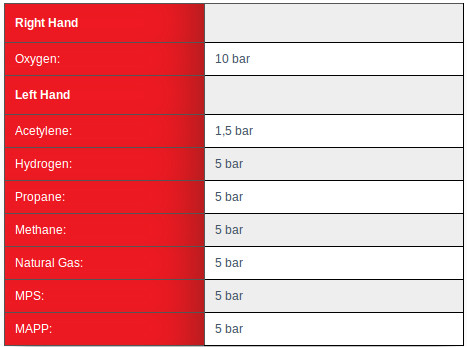

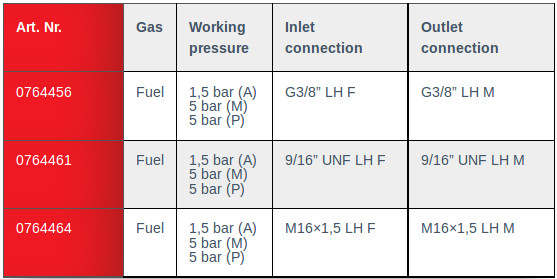

TECHNICAL DATA :
Technical Drawings :
| SAFE-GUARD-5 / 5 FUNCTION FLASHBACK ARRESTOR - (PDF) | {DOWNLOAD} |
