ARC (MMA) Rectifiers

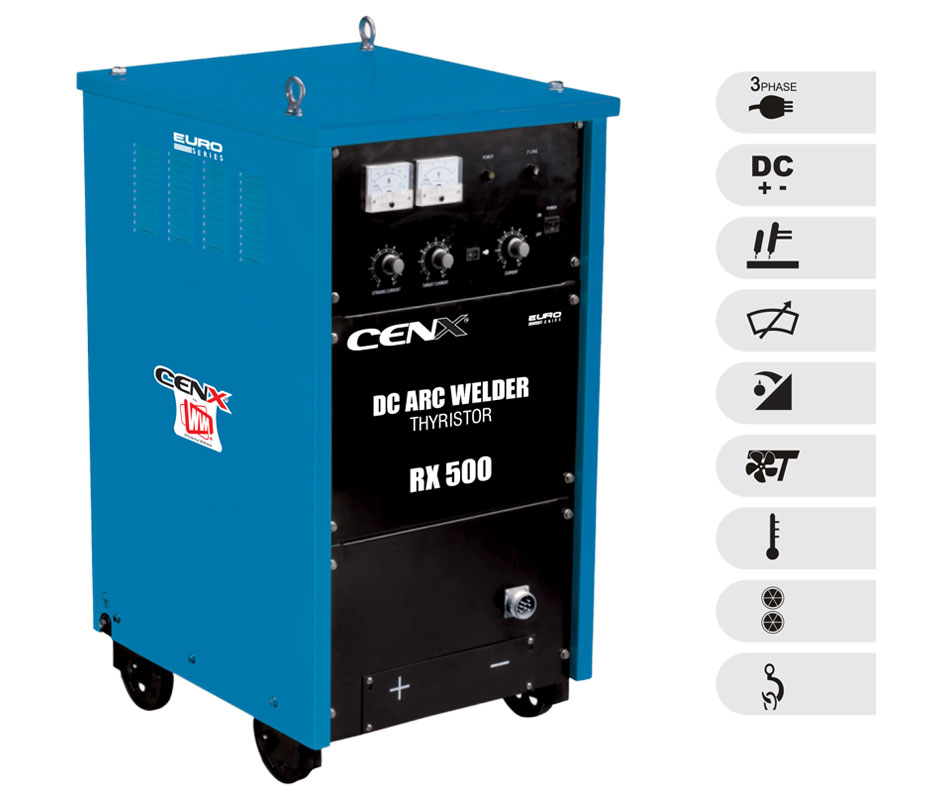

RX Range Heavy Industrial - Model: RX 400/500/600


Technical Specification:

Technical Specifications RX 400 RX 500 RX 600
Input Voltage (V) 415 +/- 15% 415 +/- 15% 415 +/- 15%
Frequency (Hz) 50/60 50/60 50/60
Rated Input Current (A) 36 45 70
No Load Voltage (V) 75 75 75
Output Current Range (A) 50 - 400 50 - 500 80 -600
Duty Cycle (%) 60 60 60
Efficiency (%) 85 85 85
Power Factor 0.7-0.9 0.7-0.9 0.7-0.9
Insulation Class F F F
Protection Class IP21 IP21 IP21
Weight (Kgs.) 183 190 230
Dimension (mm) 670 X 530 X 1050 670 X 530 X 1050 670 X 530 X 1050
Usable Electrode - MS - (mm) 1.6-6 1.6-8 1.6-8
Product Reference ZX5-400 ZX5-500 ZX5-600
Product Code JB891083 JB891084 JB891085

Features :


  • Reliable Technolog
  • Stable arc and less spatter
  • Excellent arc control
  • Deep Penetration and excellent strength
  • Heavy Duty & Rugged
  • Welds all basic and cellulose electrodes
  • Continuous rating

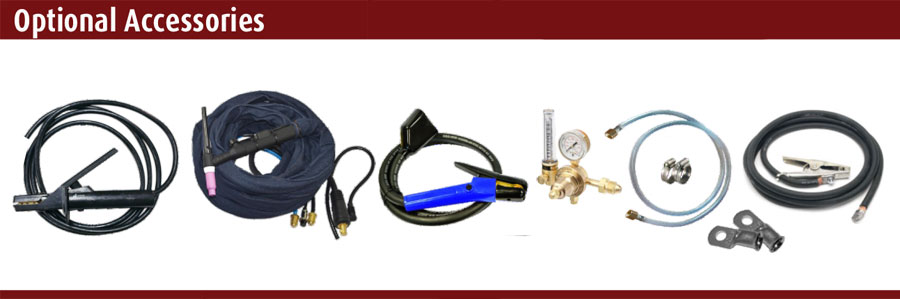

  • Optional: Remote Control
  • Suitable for Gouging (only RX 600)

Welds :


  • Mild Steel
  • Stainless Steel
  • Cast Iron
  • Aluminium
