ARC (MMA) Inverters

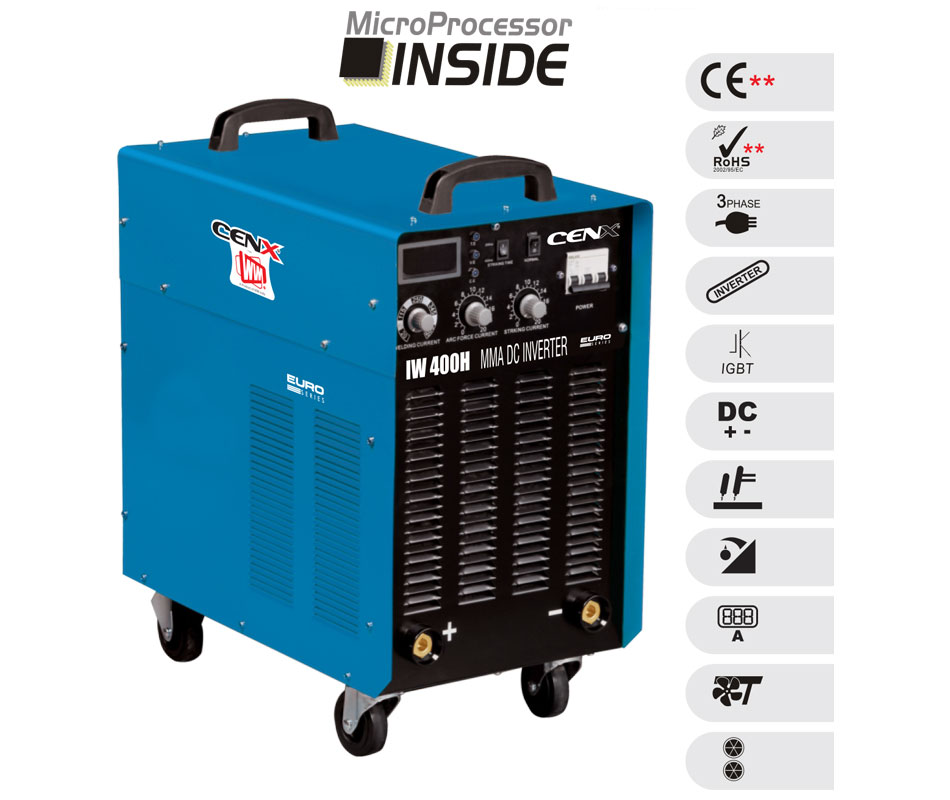

IA Range Heavy Industrial - Model: IW 300H/400H/500H


Technical Specification:

Technical Specifications IW 300H IW400H IW 500H
Input Voltage (V) 415 +/- 15% 415 +/- 15% 415 +/- 15%
Frequency (Hz) 50/60 50/60 50/60
Rated Input Current (A) 12 17 23.5
No Load Voltage (V) 75 75 75
Output Current Range (A) 20-315 20-400 20-500
Duty Cycle (%) 60 60 60
Efficiency (%) 85 85 85
Power Factor 0.7-0.9 0.7-0.9 0.7-0.9
Insulation Class F F F
Protection Class IP21 IP21 IP21
Weight (Kgs.) 45 50 55
Dimension (mm) 645 x 380 x 705 645 x 380 x 705 645 x 380 x 705
Usable Electrode - MS 6013 - (mm) 2.5 to 5.0 2.5 to 6.0 2.5 to 8.0
Product Reference MMA315W MMA400W MMA500W
Product Code JB891023 JB891024 JB891025

Features :


  • Reliable IGBT Technolog
  • Energy Saving Model
  • Arc Force function available
  • Stable arc and less spatter
  • Deep Penetration and excellent strength
  • Auto protection of over-voltage and over-current
  • Continuous rating
  • Welds all basic and cellulose electrodes
  • Optional: Cordless Remote

Welds :


  • Mild Steel
  • Stainless Steel
  • Cast Iron
  • Aluminium
