ARC (MMA) Transformers

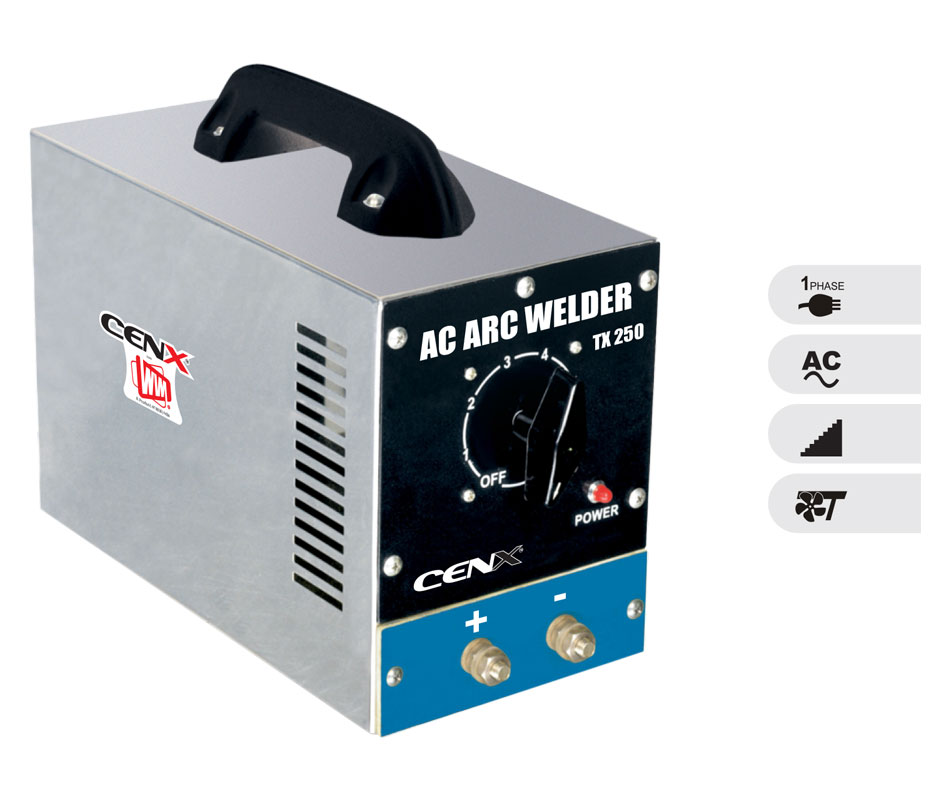

TX Range Professional - Model: TX 200/250/300

Technical Specification:

Technical Specifications TX 200 TX 250 TX 300
Input Voltage (V) 220/380 +/- 15% 220/380 +/- 15% 220/380 +/- 15%
Frequency (Hz) 50/60 50/60 50/60
Rated Input Power (KvA) 12.5 15 18
No Load Voltage (V) 55 55 55
Output Current Range (A) 80 -200 90 -250 90 -300
Duty Cycle (%) 20 20 20
Efficiency (%) 85 85 85
Power Factor 0.7-0.9 0.7-0.9 0.7-0.9
Insulation Class F F F
Protection Class IP21S IP21S IP21S
Weight (Kgs.) 20 22 24
Dimension (mm) 455 x 210 x 330 455 x 210 x 330 455 x 210 x 330
Usable Electrode - MS 6013 - (mm) 2.5 to 3.15 2.5 to 4.0 2.5 to 5.0
Product Reference BX6-200B BX6-250B BX6-300B
Product Code JB891062 JB891063 JB891071

Features :

  • Stainless Steel Body
  • Reliable Technology
  • 7 Step Amps. Selection
  • Stable arc and less spatter
  • Continuous rating
  • Welds all basic electrodes

Welds :

  • Mild Steel
  • Stainless Steel
