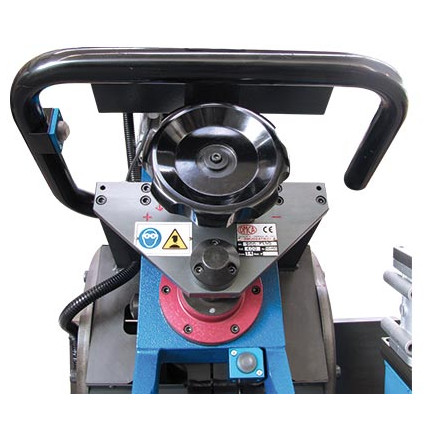

Bevelling Machines With Automatic Feeding



Art. 900 Plus

Description :

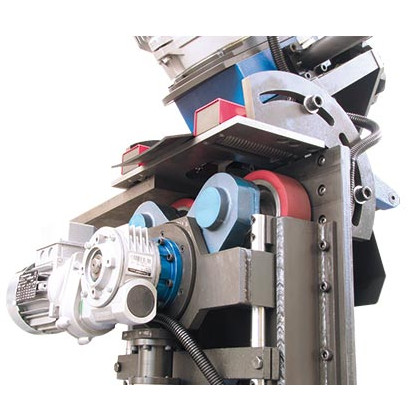

  • Frame in steel and aluminum casting.
  • Hardened work plate with sliding rollers.
  • Motorized feeding with two polyurethane wheels (90 shore).
  • Trolley complete with height adjustment devices, chips protection, chip box, and swivel wheels with brake.
  • Possibility to work with the trolley lifted in the presence of irregular floor. Possibility to work also without trolley.

Performances :

  ART. 900 plus
Motor power Three-phase 230/400 Volt, 4kw, 50/60 Hz, 4 pols

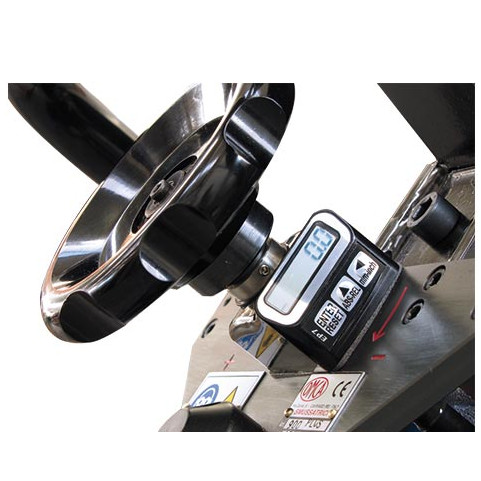

Chamfering adjustment From 5 mm to 36 mm to 45° (56 mm diagonal)
Chamfering angle From 15° to 80°
Plate thickness From 8mm to 60mm
Cutter Ø 80 mm Z 6
Cutter speed From 0 to 750 RPM
Chamfering speed From 0 to 1 mt/min
Working height 800 mm ÷ 980 mm
Working direction
Dimensions 600 x 650 x h 1700 mm

Application

Steel, stainless steel, cast iron, aluminium, alloy titanium, hardox, super duplex and so on
Weight Kg. 215
Packing dimension 920x820x1580mm - Kg. 250

(*) Different voltage available on request.


Cutter :

Sketch
F0008 Standard
Diameter Ø80 mm
H=50 mm
Ø=27 mm
(1x)
Insert ISO SDHT1204
12,7x12,7
Thickness
4,76mm
6
Material WIDIA
Insert code 02045018
Option Coated
02045018/R

For light alloy
02045018/A

Bevelling Performances :

  MAX ACHIEVABLE CHAMFER AT FIRST STEP

ANGLEα15°α30°α45°α60°α75°
Chamfer lenght L 27 15.5 13.4 15.5 24.5
Run depth S 6.7 6.7 6.7 6.7 6
  MAX ACHIEVABLE CHAMFER

ANGLEα15°α30°α45°α60°α75°
Chamfer lenght L 73.4 58 55 58 77

Special Versions :

- Plate thickness 8/100 mm and 8/200 mm
- Plate thickness less than 8 mm
- Cutter speed variator
