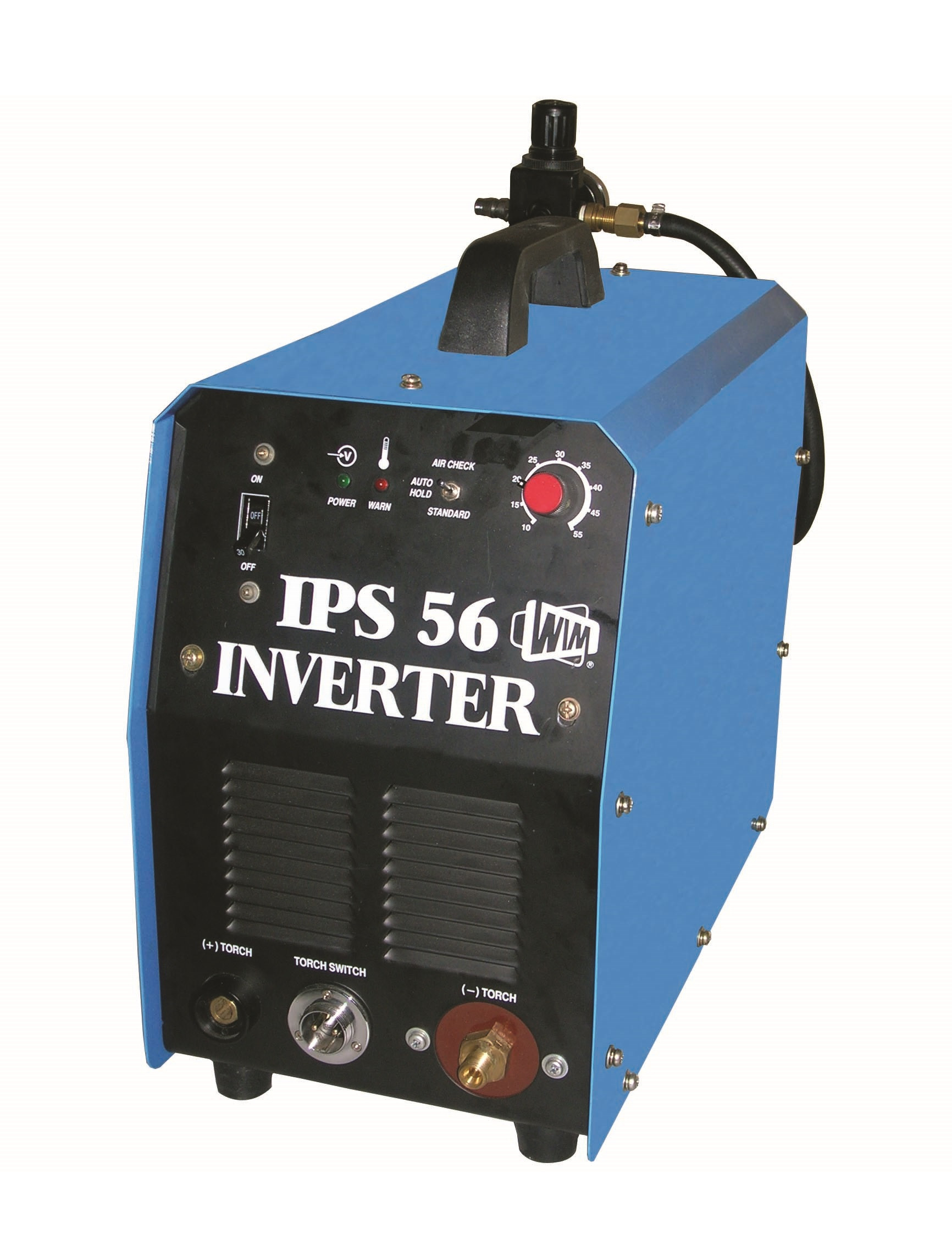

WIM Plasma Cutter - IPS 56

Product Quick Specifications :

• Rated Input Voltage: Single Phase AC 230V +15%-20%50/60Hz
• Rated Input: 12K V A
• Rated Duty Cycle: 50% (10 minutes duty cycle)
• Rated Output Current: 10A ~ 55A
• No Load O. C. V .: 260 V dc
• Rated Output V oltage: 130 V
• Dimension (W x D x H): (225 x 430 x 300)mm
• Weight: 14.2 KG

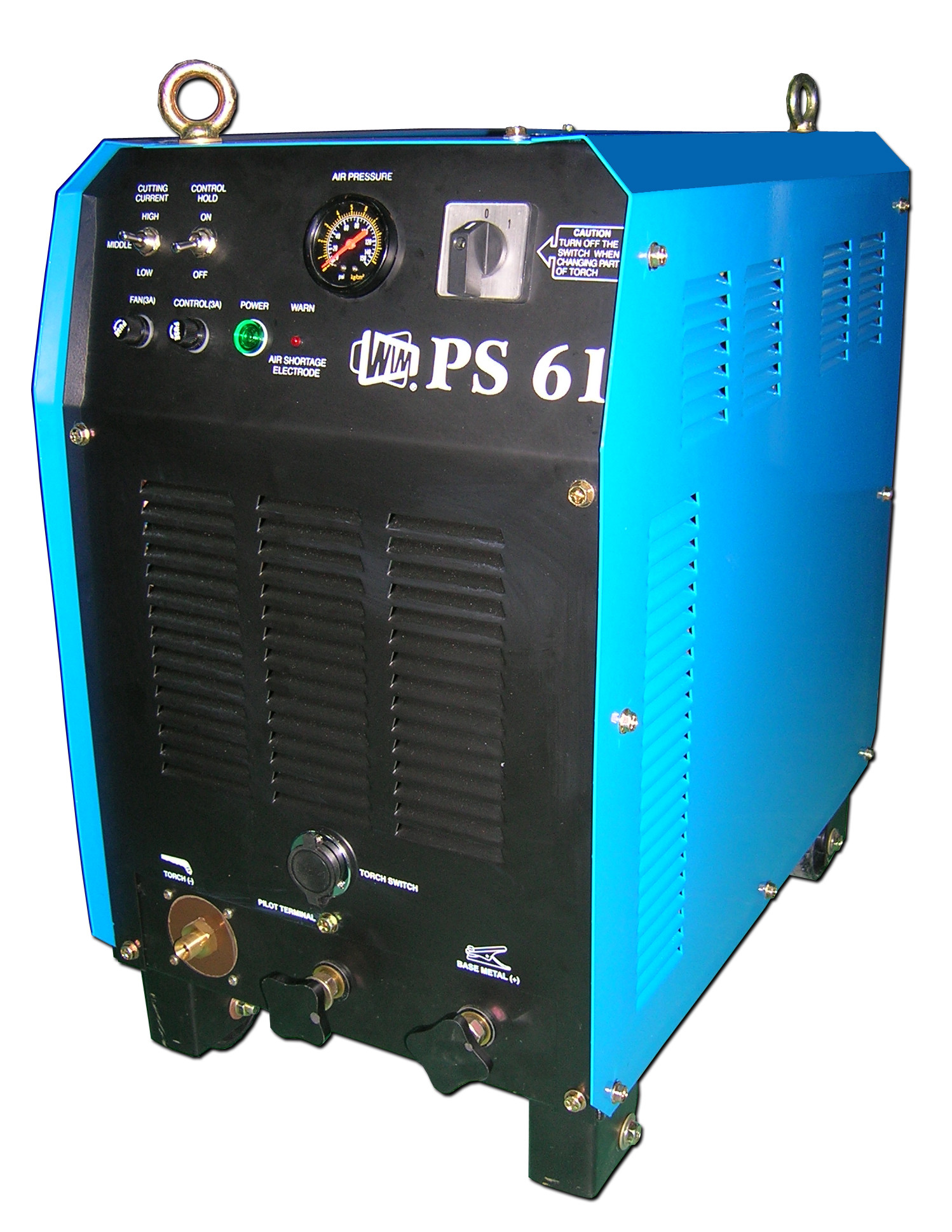

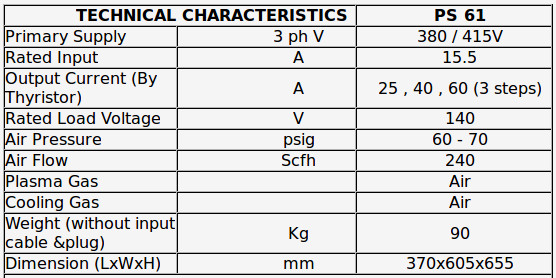

WIM Plasma Cutter - PS 61

Product Quick Specifications :

• Input Voltage : 415V
• Input Current : 15.5A
• Welding Current : 25 ~ 60A
• Duty Cycle : 65%
• Weight : 99Kg
• Dimensions (mm) : 370 x 605 x 655

Features :

-Two Piece contoured handle
- Highest quality design and manufactured
- Integral safety interlock
- Application versatility: 20-100 amps
- Compatability with more than 20 popular power supplies
- Modular design for easy repair-rather than replacement
- Single flow, gas with pilot arc start
- Same replacement parts as PC-40M machine torch
- Direct fit torch packages or generic torch packages with hook up kit
- Full assortment of accessories
- Worldwide parts available

*Please note that the duty cycle value may varies according to room temperature.

Accessories :

-Abilplas cut 70 plasma torch
-Plasma guide kit
-Earth clamp
-SRGH-W3T8

Cutting Ability for PS60 :

Indicated number shows approximate cutting speed (m/min) Cutting ability shows in case of three phase input. (In case os single phase input can be up to 20mm for mild steel stc.)

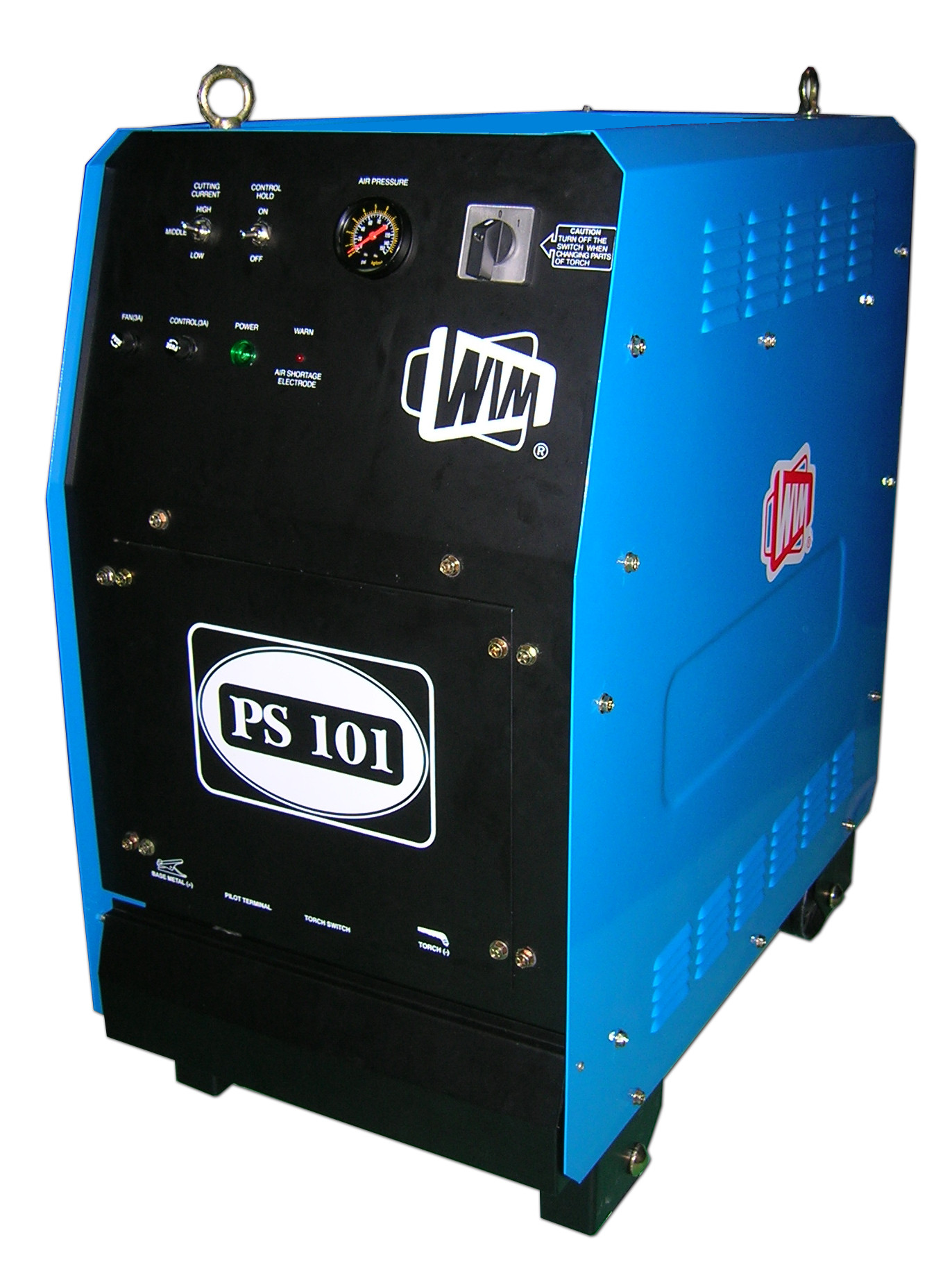

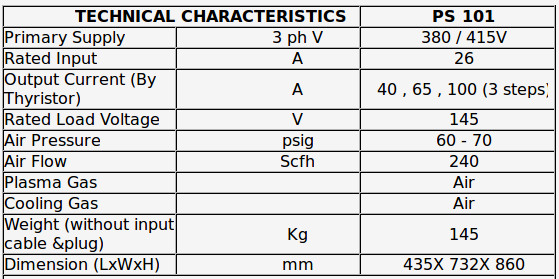

WIM Plasma Cutter - PS 101

Product Quick Specifications :

• Input Voltage : 415V
• Input Current : 26A
• Welding Current : 40 ~ 100A
• Duty Cycle : 65%
• Weight : 156Kg
• Dimensions (mm) : 435X 732X 860

Features :

-Two Piece contoured handle
- Highest quality design and manufactured
- Integral safety interlock
- Application versatility: 20-100 amps
- Compatability with more than 20 popular power supplies
- Modular design for easy repair-rather than replacement
- Single flow, gas with pilot arc start
- Same replacement parts as PC-40M machine torch
- Direct fit torch packages or generic torch packages with hook up kit
- Full assortment of accessories
- Worldwide parts available

*Please note that the duty cycle value may varies according to room temperature.

Accessories :

-Abilplas cut 110/150 plasma torch
-THP- 110/150
-Plasma guid kit
-Earth clamp
-SRGH-W3T8

Cutting Ability for PS60 :

Indicated number shows approximate cutting speed (m/min) Cutting ability shows in case of three phase input. (In case os single phase input can be up to 35mm for mild steel stc.)
